FBT-ZLB Series of Special assembly machine for power-assisted steering pump belt pulley



Product Feature

1.This machine has compact structure, covers small space and can be easily operated.

2.Professional design solves the assembly technological problem of power-assisted steering pump belt disk.

3.This equipment adopts PLC, hydraulic pressure sensor and touch screen to form intelligent control system, which ensures easy operation.

4.Parameters like main shaft rotary speed, oil cylinder stroke, pressure, speed and count etc. can be set on the touch screen.

5.Real-time display of tension curve can be realized. Required product tension range can be set optionally. Assembled products can be inspected to be qualified or unqualified.

6.Movement velocity of main shaft driven by step-by-step motor is controllable and response speed is fast.

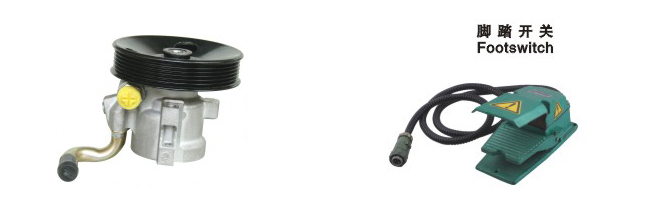

7.Inching/automatic/full-automatic functions can be switched mutually. Automatic function can be realized through operation by both hands or foot switch.




Technical Parameters

The specific technical data, Please contact our staff of the company

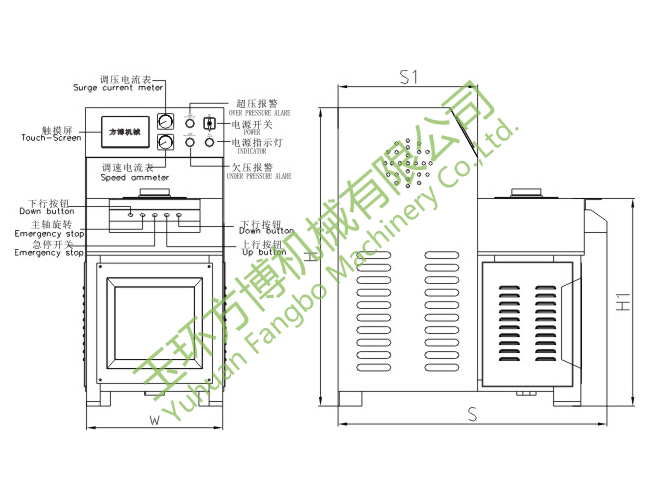

型号Model
H
H1
W
S
S1
FBY-ZLB05
1315
915
610
1185
615


Specifications
规格
单位/UNIT
FBY-ZLB05
Theoretical pressure
理论压力
KN
50
Rated oil pressure
额定油压
MPa
13
Max stroke
最大行程
mm

Down speed
快进速度
mm/s

Working speed
工进速度
mm/s

Return speed
回程速度
mm/s

The height of the bed
工作台距地面高度
mm

Motor power
电机功率
KW

Power (3ΦAC,50Hz)
电源(3ΦAC,50Hz)
V

Weight
重量(约)
KG
