FBY-FCM06-20 High-precision multi-station 4-column hydraulic machine



Product Feature

1.4-column multi-station structure design ensures stressed stability. Circular arc console design makes it possible for two persons to put products on molds simultaneously. Continuous operation of press machine improves work efficiency and protect safety of operation staff.

2.This equipment adopts PLC, force sensor and touch screen to form intelligent operation system. Parameters like pressure, displacement,time, count and alarm can be set and displayed on the touch screen.

3.With adoption of force control mode, after stamping is finished, compare stamping force value with set force value within certain displacement range, then judge whether workpieces are qualified or not, output alarm for under-pressure or over-pressure.

4.Press-fitting force value range can be set to generate Time-Force Value curve.

5.Displacement, pressure and flow rate corresponding to fast speed and low speed can be set and displayed on the touch screen.

6.Inching/automatic functions can be switched mutually. Automatic function can be realized through foot switch.

7.High precision of repeated positioning:±0.02mm.




Technical Parameters

The specific technical data, Please contact our staff of the company

型号Model
H
H1
H2
W
S
S1

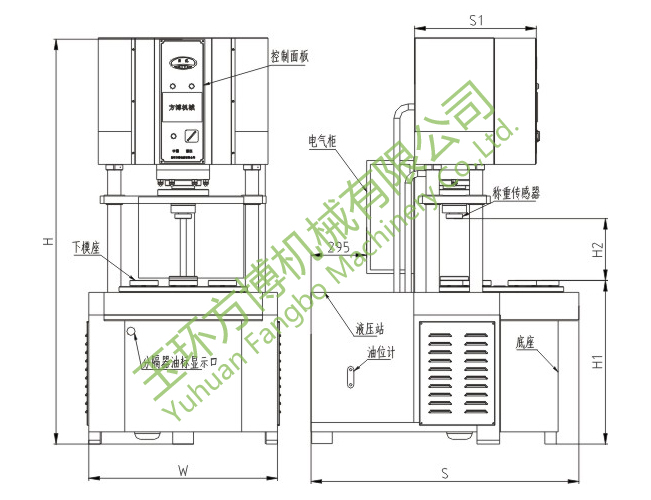

FBY-FCM06-20
2150
900
300
1000
1420
645


Specifications
规格
单位/UNIT
FBY-FCM06-20
Theoretical pressure
理论压力
KN
200
Rated oil pressure
额定油压
MPa
12
Max stroke
最大行程
mm

Number of work position
工位数

Max Opening Height
最大开口高度
mm

Down speed
快下速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
上行速度
mm/s

The height of the bed
工作台离地面高度
mm

Rotating disc dimension (diameter)
转盘尺寸(直径)
mm

Normal working oil temperature
正常工作油温

Separator corner precision
分隔器转角精度

Perpendicularity of main shaft and lower mold fixing board
主轴与下模固定板垂直度
mm


Parallelism of pressure sensor lower surface and
lower mold fixing board upper surface

压力传感器下表面和下模固定板上表面平行度
mm

Driving power
驱动功率
KW

Power
电源
V

Machine tool external dimension-front   back
机床外型尺寸-前 后
mm

Machine tool external dimension-left   right
机床外型尺寸-左 右
mm

Machine tool external dimension-total   height
机床外型尺寸-总高度
mm

Weight
重量(约)
Kg
