FBS-MN Multi-station multi-point riveting press for cutters



Product Feature

1.Press body is integrally cast to ensure compact structure and little space occupation. With little vibration shock during operation, it is suitable for high-rise environment.

2.It adopts multi-station turntable type structural design. Stamping stations and product assembly stations are separated, which saves time of clamping products, improves production efficiency and effectively ensures safety of operators.

3.It adopts advanced numerical control system. Parameters like pressure, displacement, time, counting, speed and alarming etc. can be set and displayed on touch screen, thus ensuring easy operation.

4.It is suitable for multi-point riveting of various hardware tools and functional cutters, with high efficiency and good quality.

5.Two actuating modes, namely double-hand button and pedal switch can be interchanged.






Technical Parameters

The specific technical data, Please contact our staff of the company

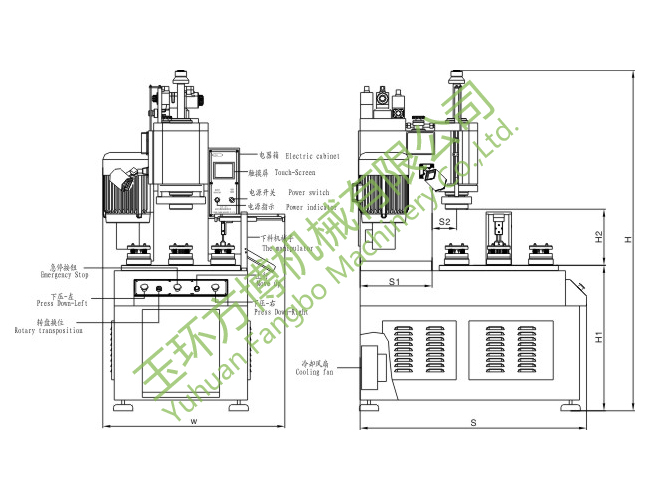

型号Model
H
H1
H2
S
S1
S2
S2
FBS-MN-05
1800
780
300
1200
350
140
1000
FBS-MN-10
2000
780
320
1290
410
140
1035


Specifications
规格
单位/ UNIT
FBX-MN-05
FBS-MN-10
Rated oil pressure
额定油压
Mpa
10
12
Theoretical pressure
理论压力
KN
50
100
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Number of work position
工位数
-

Down speed
快进速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

The height of the bed
工作台距地面高度
mm

The size of the bed
有效工作台尺寸
mm

Motor power
电机功率
Kw

Weight
机床总重量(约)
Kg
