FBZ-M03-XFC Series CNC three-station gas-liquid pressurization spin riveting machine



Product Feature

1.C-model machine body adopts HT25 integral casting, with good rigidity and small deformation after high temperature aging treatment.

2.Professionally designed, it is suitable for flanging and riveting various accessories such as auto steering ball joints, silicone oil clutches and washing machine clutches etc.

3.Technical parameters like stroke, time and counting etc. can be directly set on touch screen.

4.It adopts variable frequency power head design. Speed of main shaft can be adjusted freely, with easy operation and wide actuating range.

5.It adopts air as power source, utilizes gas-liquid pressurization principle to realize fast actuating and high power output. It causes no noise generated by hydraulic system under standby mode, which can save power consumption and reduce product cost.

6.Full automatic, semi-automatic and inching function can be set.

7.With safety design, it adopts double-hand operation, with functions of emergency stop and up-and-down inching.

8.Downward movement stroke has two kinds of speeds, namely fast movement and work-feeding. Fast movement improves operating efficiency. Th speed of work feeding can be easily adjusted so as to protect molds and improve product press-fitting quality.

9.It adopts two circular actuating modes, button and petal switch.

10.Products to be riveted have a wide diameter range. Products of different diameters can be riveted only by adjusting the opening of riveting head.

11.The coaxiality between riveting head (in time of rotating) and main shaft is 0.05.

12.It is optional to detect whether products are placed on certain position, being flexible and human-based.

13.With reliable design, it adopts triple units to respectively control fast downward movement, work-feeding, return stroke to ensure all links have relatively stable pressure.




Technical Parameters

The specific technical data, Please contact our staff of the company

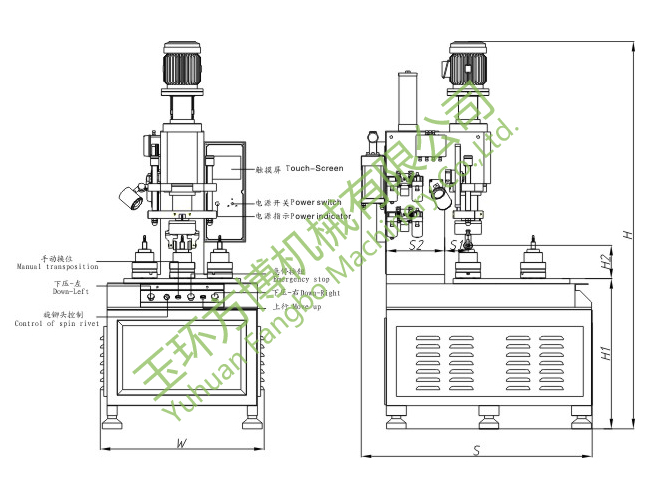

型号Model
H
H1
H2
S
S1
S2
W
FBZ-M03-XFC03
2200
900
250
1400
140
350
900
FBZ-M03-XFC05
2350
900
250
1460
140
350
940
FBZ-M03-XFC10
2550
900
300
1600
200
450
1050


Specifications
规格
单位/ UNIT
BZ-M03-XFC03
FBZ-M03-XFC05
FBZ-M03-XFC10
Theoretical output pressure
理论出力
KN
30
50
100
Rated air pressure
额定气压
Mpa
0.6
0.6
0.7
Max stroke
最大行程
mm

Supercharged stroke (force stroke)
增压行程(力行程)
mm

Throat Dept
喉深
mm

Daylight Opening Height
最大开口高度
mm

Down speed
快下速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

The height of the bed
工作台距地面高度
mm

Riveting Motor power
旋铆电机功率
Kw

Power(3ΦAC,50Hz)
电源(3ΦAC,50Hz)
V

Number of work position
工位数
-

External dimension of machine tool
机床外形尺寸(前后×左右×总高)
mm

Weight
重量
Kg
