Your location:Index >> Multi-station Pressure Riveting Machine Multi-station Pressure Riveting Machine

FBQY-XFM Series of Multi-station Pressure Riveting Machine




Product Feature

1.Multi-station pressure riveting machine,mainly for the auto parts industry of steering ball type pressure,flange rivet,stepcomprises:feeding pneumatic chuck clamping,ball pinpreloading, manipulator automatically send the ball head back shell,automatic flange rivet,automatic detection of ball headassembly torque.

2.Using PLC control,on the screen to set arbitrary movement speed,pressure,time,under the pressure of high position precision,reliable performance.

3.Hydraulic system pressure stable performance,high precision,large range of adjusting pressure.

4.Spindle down with the fast and boost work into two kinds of speed,the fast forward improve work efficiency,pressure feeding speed can be adjusted in a certain range,improve product assembling quality,protect the mould and products.

5.multi-station pressure riveting machine,reduce the manpower cost,reduce the occupied area, increase the yield,improve the efficiency of.

6.Infrared operation safety induction device (according to customer demand matching).






Technical Parameters

The specific technical data, Please contact our staff of the company

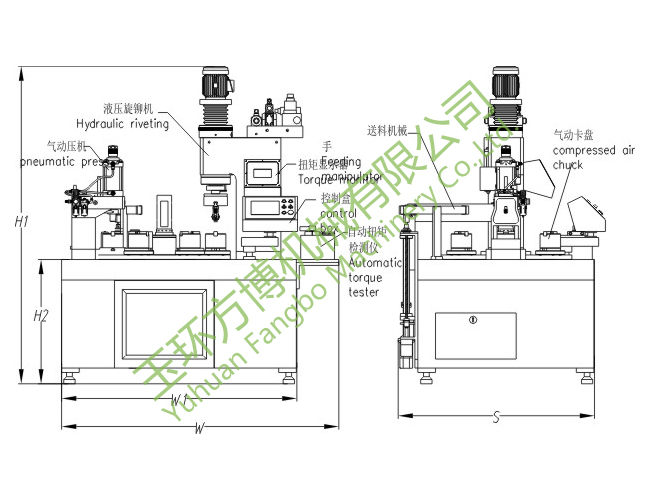

型号Model
H1
H2
S
W
W1
FBQY-XFM06-480
2225
850
1335
2000
1605


Specifications
规格
单位/ UNIT
FBY-XF480
FBQ-A700
Rated oil pressure
理论压力
KN
50(5T)
7(0.7T)
Theoretical pressure
额定油压/空压
Mpa
10(油压)
0.5-0.7(空压)
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Throat depth
喉深
mm

Down speed
快下速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

Number of work position
工位数
-

The height of the bed
工作台距地面高度
mm

Motor power
油泵电机功率
Kw

Spin riveting the motor power
旋铆电机功率
Kw

Power(3фAC,50Hz)
电源(3фAC,50Hz)
V

Weight
重量
Kg

Fuel tank capacity
油箱容量
L
