FBY-XFM Multi-station Series of Hydraulic Riveting Machine



Product Feature

1.The C-body design,overall casting make the machine hight rigid.

2.Overall body casting,aging treatment,rigid,a small amount of deformation.

3.Adopts PLC control,set the action on the screen any speed,pressure,time,under pressure position accurate to ±0.02mm,high precision,good reliability.

4.Press equipped with a pressure sensor,and display the actual pressure,pressure detection range can be set to detect the press-fit products are qualified.

5.Full hydraulic system,the pressure is strong,stable preformance and high accruacy pressure adjustment range.

6.Configuretion using a press and a Riveting,workpiece clamping to complete a pressure and  a riveting two processes,Completed automatically after discharging mechanism,The accuracy of the product have been greatly improved,high work effciency.

7.Security design,using both hands to operate,with emergency stop and jog up and down function.

8.Downward movement stroke with fast forward and work into two speeds,fast forward to improve work efficiency:Work Speeds can be arbitrarily adjusted(5-40mm/s),to protectthe mold,improve product quality of the press-fit.

9.Key and Food switch two cycle start modes.

10.Infrared protection can be configured(Optional).




Technical Parameters

The specific technical data, Please contact our staff of the company

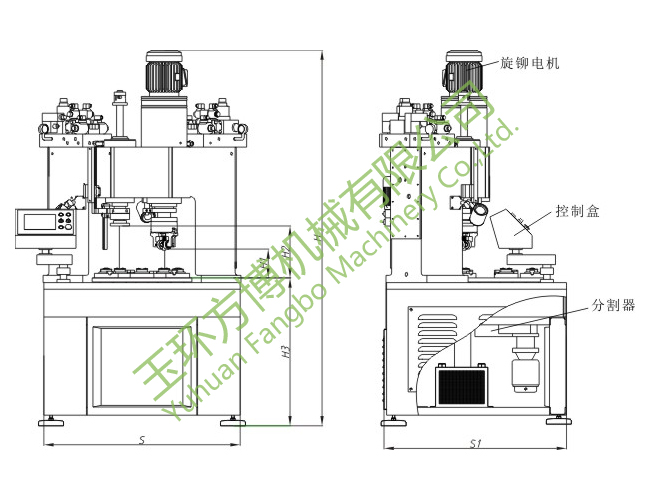

型号Model
H
H1
H2
H3
S
S1
FBY-XFM05-760
2160
200
300
900
1200
1100


Specifications
规格
单位/ UNIT
FBY-XF760
FBY-CF05
Rated oil pressure
额定油压
Mpa
13
10
Theoretical pressure
理论压力
KN
76
50
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Throat depth
喉深
mm

Down speed
快下速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

The height of the bed
工作台距地面高度
mm

The size of the bed
有效工作台尺寸
mm

Motor power
油泵电机功率
Kw

Spindle motor power
主轴电机功率
Kw

Weight
机床总重量(约)
Kg

Fuel tank capacity
油箱容量
L
