FBY-H Series of Mute the Microseismicity Hydraulic Punching Machine



Product Feature

1.C-type single-column design,machine tool bed HT300 casting,after high temperature aging treatment,good rigidity,a small amount of deformation.

2.Professional design,suitable for a variety of sheet punching,molding,stretch,shear machining,bending,stamping,riveting and other processing.

3.The operation speed of the machine is fast,high-precision,low noise and vibration impact is very small,especially in stamping operations floor environment.

4.The whole hydraulic system,the pressure is strong,the work performance is stable,the stroke of stamping can be arbitrarily adjusted,and the pressure regulating range.

5.Security design,using both hands to operate,with emergency stop and jog up and down function.

6.Punch down, with two speeds,fast-forward and slow forward,fast forward speed is fast and can improve work efficiency;Slow forward speed can be adjusted,to improve the quality of press-fit,protection of mold and products.

7.Two of the cycle start-up mode:buttons and pedals.

8.The seal is NOK from Japan and Taiwan tripod base,hydraulic fittings using brand-name products of taiwan.

9.Infrared protection device(according to customer's requirements).




Technical Parameters

The specific technical data, Please contact our staff of the company

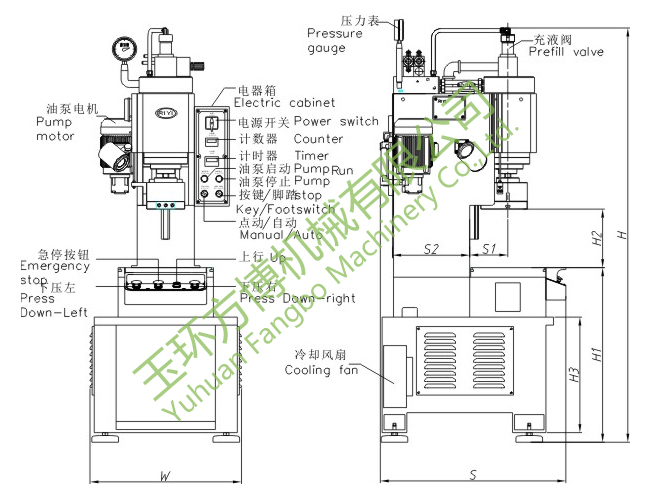

型号Model
H
H1
H2
S
S1
S2
W
FBY-H05
2120
890
350
900
140
350
650
FBY-H10
2310
950
320
950
200
400
750
FBY-H15
2430
1000
350
980
200
420
800


Specifications
规格
单位/ UNIT
FBY-H05
FBY-H10
FBY-H15
Theoretical pressure
额定油压
Mpa
9
11.5
14
Rated oil pressure
理论压力
KN
50(5T)
100(10T)
150(10T)
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Throat Depth
喉深
mm

Down speed
快下速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

The size of the bed
工作台距地面高度
mm

The height of the bed
有效工作台尺寸(前后*左右)
mm

Motor power
油泵电机功率
Kw

Power(3фAC,50Hz)
电源(3фAC,50Hz)
V

Weight
机床总重量(约)
Kg

Fuel tank capacity
油箱容量
L
