FBY-X-FTC Series CNC Hydraulic Riveting Machine



Product Feature

1.C-body design, whole body cast, high-temperature aging, high rigid and small deformation.

2.Adopt PLC control, realize human-computer interaction and facilitate operation through touch screen, set speed, pressure and time within specified range of touch screen.

3.Hydraulic system sensor is installed to display actual pressure. Pressure testing range can be set to test whether pressure conforms to set range. The machine will give automatic alarming and stop operation in case of overpressure or insufficient pressure.

4.Small forming force of riveting, only 1/10 that of punching and riveting, no deformation after riveting with smooth and nice riveting surfaces.

5.Professionally designed to be applied in riveting of various components and parts.

6.Frequency conversion power head, arbitrarily adjusted speed of main shaft, easy operation and wide scope.

7.Full hydraulic system, high pressure, stable work performance, large regulating range of pressure, and high precision.

8.Safety design, application of bimanualness, with emergency stop as well as jog up and down function.

9.The downward movement has two speeds of fast forward and work feeding, fast speed improves work efficiency while work feeding protects mould to enhance riveting quality by arbitrary adjustment of speed.

10.Circulating start-up of key pressing and foot switching, easy to achieve auto-control.

11.No vibration, low noise and energy, easy and safe operation with high efficiency and low cost.

12.Sealing element applies NOK of Japan and DZ U-SEALS.

13.Infrared protection device. (as required by customers)




Technical Parameters

The specific technical data, Please contact our staff of the company

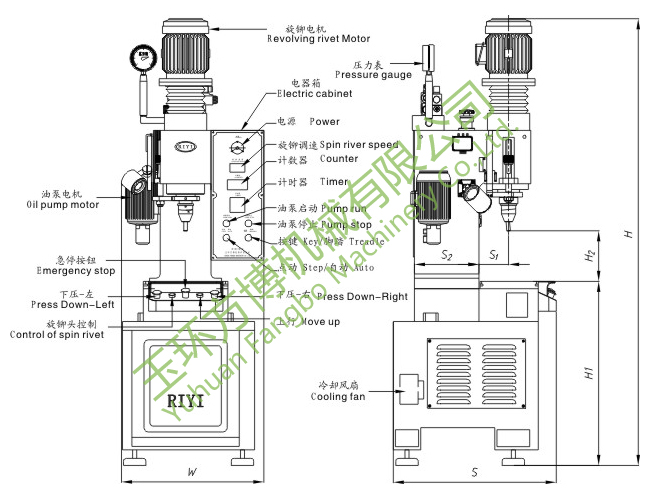

型号Model
H
H1
H2
S
S1
S2
W
FBY-X-FTC30
2130
750
310
935
300
290
800
FBY-X-FTC55
2200
880
270
780
140
350
720
FBY-X-FTC120
2300
880
300
935
200
350
750


Specifications
规格
单位/ UNIT
FBT-FTC120
FBY-X-FTC55
FBY-X-FTC30
Theoretical pressure
理论压力
KN
100(10T)
50(5t)
30(3T)
Rated oil pressure
额定油压
Mpa
13
13
10
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Throat Depth
喉深
mm

Down speed
快进速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

The size of the bed
工作台尺寸
mm

Spin riveting motor power
旋铆电机功率
Kw

Spindle motor speed
主轴转速范围
rpm

Motor power
油泵电机功率
Kw

Power(3ΦAC,50HZ)
电源(3ΦAC,50HZ)
V

Weight
重量
Kg

Fuel tank capacity
油箱容量
L
