FBY-RR Precise hydraulic radical riveting machine



Product Feature

1.Machine body is integrally cast with good rigidity, small deformation and stable performance after high temperature aging treatment.

2.It adopts the design of main shaft variable frequency power head. Main shaft rotary speed can be adjusted freely within specified range, with easy operation and wide actuating range.

3.Speed, pressure and time etc. can be set on the touch screen.

4.Workbenches can be adjusted automatically up and down to rivet products of different heights or different heights of workbenches from the ground. Adjusting and operating are easy, fast and convenient.

5.It is installed with lower-adjusting lock nut to slightly adjust riveting distance.

6.It adopts the most advanced multi-pedaled plum blossom type rotary rolling technology. Riveting materials deform in diametric direction, and form fiber fluid tangent to operating load, greatly enhancing anti-load capacity.

7.With good static riveting performance, plated rivets can be processed. This machine can be used to rivet plastic and ceramic materials when feed rate and pressure are adjusted appropriately.

8.With good riveting stability, rivets that are not clamped tightly without aiming at central points can be riveted smoothly.

9.Because riveting force is the least under the circumstance of same proportion, riveted parts don’t cause bad deformation after being riveted, with little internal stress, without causing any inner cracks. Rejection rate of defective products reaches nearly zero.

10.Radical riveting is applicable to a variety of fields. Besides those fields that can be processed by rotary rolling type riveting machines,it can also rivet semi-enclosed riveted parts, for example, rivets inside lock cases; static pressure fastening riveted parts like universal joints; rivets with comparatively large long diameters such as automobile windshield wipers. It has extremely good processing performance for riveted parts requiring internal/external flanging. Plastic and ceramic materials can also be riveted.








Technical Parameters

The specific technical data, Please contact our staff of the company

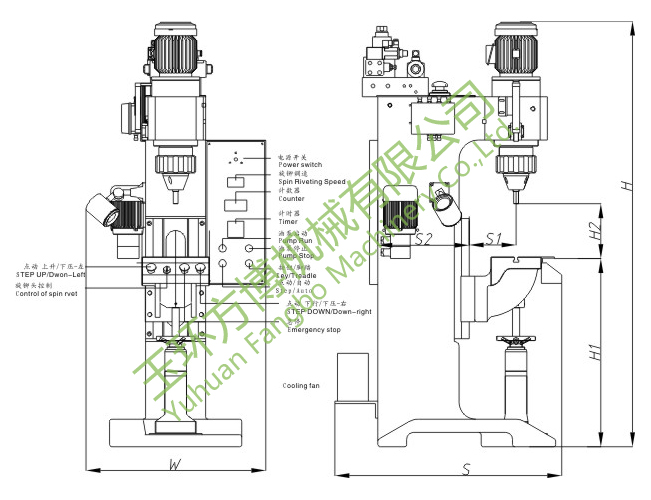

型号Model
H
H1
H2
S
S1
S2
W
FBY-RR1.5
1780
800
220
950
200
380
720
FBY-RR0.2
1780
800
220
950
200
380
720
FBY-RR3.5
1850
800
250
1020
200
400
750
FBY-RR6.5
1950
800
250
1060
200
420
780
FBY-RR10
2150
800
300
1100
220
450
800


-Specifications
规格
单位/ UNIT
FBY-RR1.5
FBY-RR02
FBY-RR3.5
FBY-RR6.5
FBY-RR10
Max. Riveting diameter
最大铆接直径
mm

Max. Riveting force
最大铆接力
Kn

Max stroke
最大行程
mm

Daylight Opening Heighth
最大开口高度
mm

Throat Dept
喉深
mm

The size of the bed
工作台有效面积
mm

The height of the bed
工作台距地面高度
mm

Motor power
油泵电机功率
Kw

Splindle motor power
主轴电机功率
Kw

Splindle motor sped
主轴转速
rpb

Power(3ΦAC,50Hz)
电源(3ФAC,50HZ)
V

Weight
重量
Kg
