FBY-XF Series of Hydraulic Riveting Machine


1.The C-body design,overall casting make the machine high rigid.

2.Professuonal design,suitable for varioud parts of the flange tiveting,such as ball,silicone oil clutch etc.

3.Freqency power heade,adjust speed arbitrary ,wide speed range.

4.Full hydraulic system pressure, performance and stability, and pressure adjustment range.

5.Safe designed,hand operation,with emergency stop button and job up and down function.

6.downward movement with the fast and Feeding speed.the fast for improve work efftciency:feeding speed can be adjust to protect the mold ,iprove product quality.

7.key and Food switch two cycle start modes.

8.Riveting diameter range (Ф25-Φ75), only need to adjust the spin rivet opening can be riveting products of different diameter.

9.Infrared protection can be configured(optional).

10.ball head plane matching torque detection device.




Product Feature

Technical Parameters

The specific technical data, Please contact our staff of the company

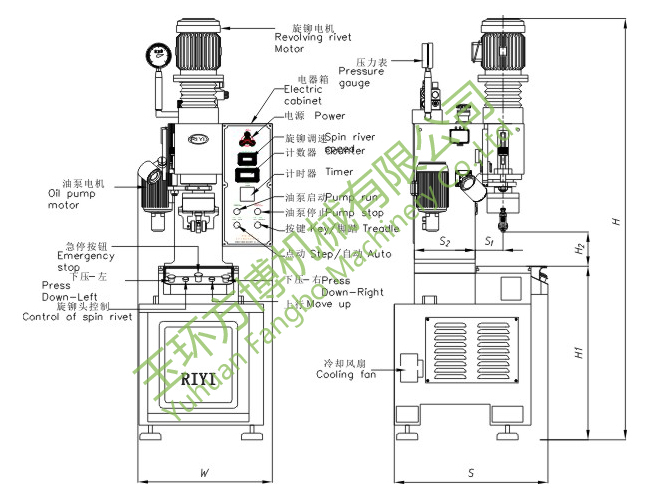

型号Model
H
H1
H2
S
S1
S2
W
FBY-XF480
2160
900
250
780
140
300
750
FBY-XF760
2200
900
250
780
140
350
750


Specifications
规格
单位/ UNIT
FBY-XF480
FBY-XF760
Rated oil pressure
额定油压
Mpa
10
13
Theoretical pressure
理论压力
Kn
48
76
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Throat Depth
喉深
mm

Down speed
快下速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

The size of the bed
工作台距地面高度
mm

The height of the bed
有效工作台尺寸(前后*左右)
mm

Motor power
油泵电机功率
Kw

Riveting moter power
旋铆电机功率
Kw

Spindle motor speed
主轴转速范围
rpm

Weight
机床总重量(约)
Kg

Fuel tank capacity
油箱容量
L
