FBY-XHC Series of CNC Hydraulic Riveting Machine



Product Feature

1.With C-type machine body design,machine body is integrally cast to ensure good rigidity and small deformation after high temperature aging treatment.

2.Professionally designed to be applicable to edge forming, riveting operation for various accessories, for example, auto steering gears and silicone-oil clutch etc.

3.With variable frequency power head design, rotary speed of principal axis can be adjusted freely. Operation is easy and actuating range is large.

4.Adoption of all hydraulic system ensures high pressure, stable operating performance, large adjustment range and high pressure accuracy.

5.With safety design, the machine adopts double-hand operation, and is furnished with functions of emergency stop and up-and-down inching.

6.Adopt PLC control, realize human-computer interaction and facilitate operation through touch screen, set speed, pressure and time within specified range of touch screen.

7.Hydraulic system sensor is installed to display actual pressure. Pressure testing range can be set to test whether pressure conforms to set range. The machine will give automatic alarming and stop operation in case of overpressure or insufficient pressure.

8.Deep-throat type hydraulic riveting machine is suitable for products with large external structure.

9.To guarantee operator’s safety, movable workbench(push cylinder) can be installed to ensure loading and unloading of materials are conducted within safety area outside riveting head.

10.Principal axis has two kinds of speeds, fast stepping and pressurized slow feeding when moving downwards. Fast stepping improves operation efficiency. The speed of pressurized slow feeding can be adjusted freely so as to protect molds and improve riveting quality of products.

11.Adopt two circulative starting modes, manual button and pedal.

12.Riveted products have wide diameter range (Φ25-Φ75). Rivet products of different diameters by adjusting the opening of riveting head. It is easy to replace riveting mold.

13.Infrared safety device (Optional according to customers’demands).

14.Special machine (steering gear) can be installed with torque testing device.f products.








Technical Parameters

The specific technical data, Please contact our staff of the company

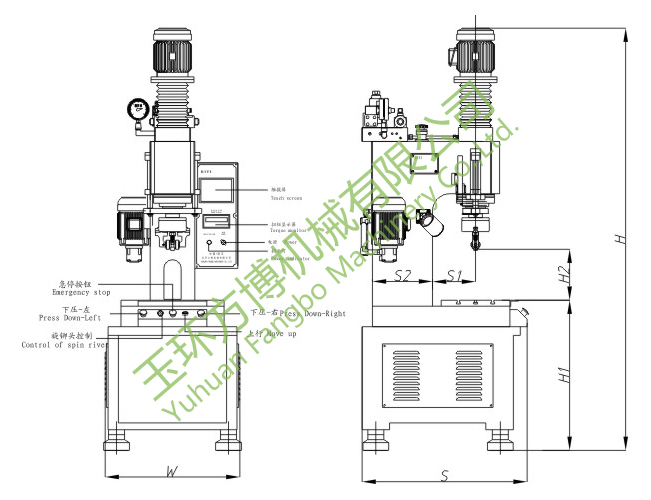

型号Model
H
H1
H2
S
S1
S2
W
FBY-XHC480
2160
900
250
930
250
300
800
FBY-XHC760
2480
900
300
960
250
350
800


Specifications
规格
单位/ UNIT
FBY-XHC480
FBYXHC760
Rated oil pressure
额定油压
Mpa
10
13
Theoretical pressure
理论压力
Kn
48
76
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Throat Depth
喉深
mm

Down speed
快进速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

The height of the bed
工作台距地面高度
mm

The size of the bed
工作台有效尺寸(左右×前后)
mm

Motor power
油泵电机功率
Kw

Riveting moter power
旋铆电机功率
Kw

Spindle motor speed
主轴转速范围
rpm

Weight
重量
Kg
