FBY-XKC-B Series of Double Location Hydraulic Riveting Machine



Product Feature

1.The C-body design,whole body casting, After high temperature aging treatment,rigid and stable,The deformation is small.

2.Machine control system is to use configuration of imported high-end brand PLC ,Touch screen with high-end brands such as Siemens, Mitsubishi, Wei Lun,Hydraulic system adopts imported double the proportion system valve(See the configuration list).

3.Two station design, save time, greatly improve work efficiency.

4.Professional design, suitable for various parts of the flange riveting, such as ball, silicone oil clutch etc.

5.Frequency power head, adjusting speed arbitrary, wide speed range.

6.All hydraulic systems, pressure stable ,Pressure can be adjusted ,a wide range of,High accuracy.

7.Can be set to automatic, semi-automatic and jog functions.

8.Safety designed,using both hands to operate,with emergency stop button and jog up and down function.

9.Downward movement of the stroke with  two speeds of  fast-forward and work into ,Fast forward improve work efficiency,Work Speeds can be adjusted,To protect the mold,Improve the quality of products press-fit.

10.Key and Foot Switch two cycle start modes.

11.The caulking diameter range is wide,Only need to adjust the opening of spin rivet,then It can be caulkedto the different diameters of the product.

12.Infrared protection can be configured (Optional).

13.Seal is Japan NOK, and Taiwan dingji.

14.(Car Ball Joint special equipment) optional torque detection device.




Technical Parameters

The specific technical data, Please contact our staff of the company

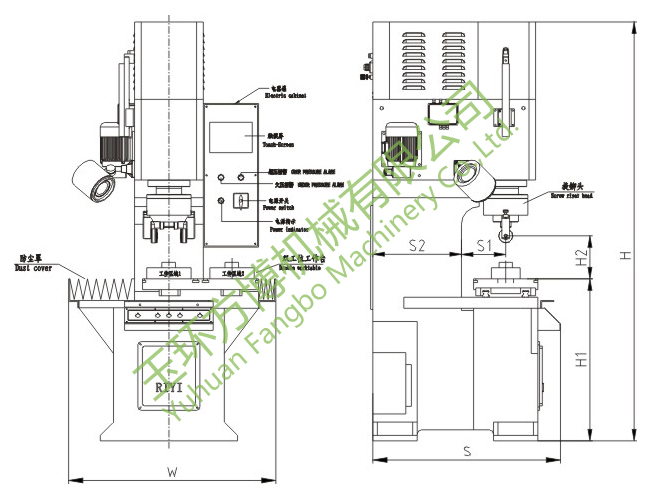

型号Model
H
H1
H2
S
S1
S2
W
FBY-XKC05-B
1900
820
200
845
200
400
960


Specifications
规格
单位/ UNIT
FBY-XKC05-B
Theoretical pressure
额定油压
Mpa
13
Rated oil pressure
理论压力
Kn
50
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Throat Depth
喉深
mm

Down speed
快下速度
mm/s

Working speed
工进速度
mm/s

Return speed
回程速度
mm/s

The height of the bed
工作台距地面高度
mm

The size of the bed
有效工作台尺寸(前后*左右)
mm

Motor Power
油泵电机功率
Kw

Riveting Moter Power
旋铆电机功率
Kw

Power(3ΦAC,50Hz)
电源(3ΦAC,50Hz)
V

Spindle motor speed
主轴转速范围
rpm

Weight
机床总重量(约)
Kg

Fuel tank capacity
油箱容量
L
