FBQ-AL Series of Deed throat Pneumatic Press Machine



Product Feature

1.Compressed air as power source, easy to operate.

2.Adopt microcomputer control,use small space,easy to operate,beautiful appearance.

3.No hydraulic system noise,can reduce electricity consumption and thus reduce production costs.

4.Output force adjustment easy,as long as regulate the input air pressure,should be able to achieve the required pressure.

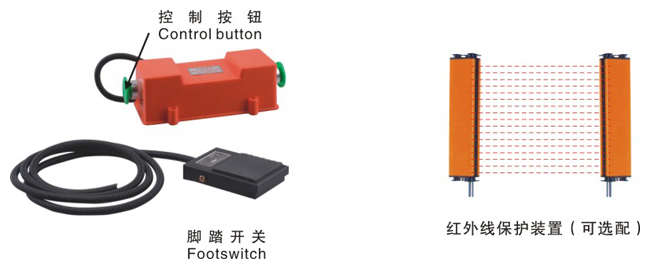

5.Safety designed,using both hands to operate,with emergency stop and jog up and down function.

6.Multi-use,for pressing,punching,riveting,assembly, cutting and so on.




Technical Parameters

The specific technical data, Please contact our staff of the company

型号Model
H
H1
H2
H3
H4
H5
H6
H7
H8
FBQ-AL700
830
110
320
115
280
15
50
6
15
FBQ-AL2000
1300
130
360
155
260
23.5
50
9
20
型号Model
W
W1
W2
S
S1
S2
B1
B2
D1
FBQ-AL700
350
240
310
550
230
220
20
10
φ40
FBQ-AL2000
490
300
380
660
290
235
23
13
φ50


Model
规格
单位/ UNIT
FBQ-AL700
FBQ-AL2000
Max working height
最大开口高度
mm

Cylinder stroke
气缸行程
mm

Table size
工作台尺寸
mm

Using pressure
使用压力
Mpa

Mold mounting hole
模柄尺寸
mm

Power
电源
V

Using pressure
使用压力
单位/UNIT

理论压力 Theory pressur

理论压力 Theory pressure

0.4
0.4
Mpa
4.58KN(458kgf)
12.05KN(1205kgf)
0.5
0.5
Mpa
5.73KN(573kgf)
15.07KN(1507kgf)
0.6
0.6
Mpa
6.87KN(687kgf)
18.08KN(1808kgf)
0.7
0.7
Mpa
8.02KN(802kgf)
21.10KN(2110kgf)
Weight
重量
Kg
