FBQ-S Series of Pneumatic Press Machine



Product Feature

1.Compressed air as power source, easy to operate.

2.Adopt microcomputer control,use small space,easy to operate, beautiful appearance.

3.No hydraulic system noise,can reduce electricity consumption and thus reduce production costs.

4.Output force adjustment easy,as long as regulate the input air pressure,should be able to achieve the required pressure.

5.Safety designed,using both hands to operate,with emergency stop and jog up and down function.

6.Multi-use,for pressing,punching,riveting, assembly,cutting and so on.




Technical Parameters

The specific technical data, Please contact our staff of the company

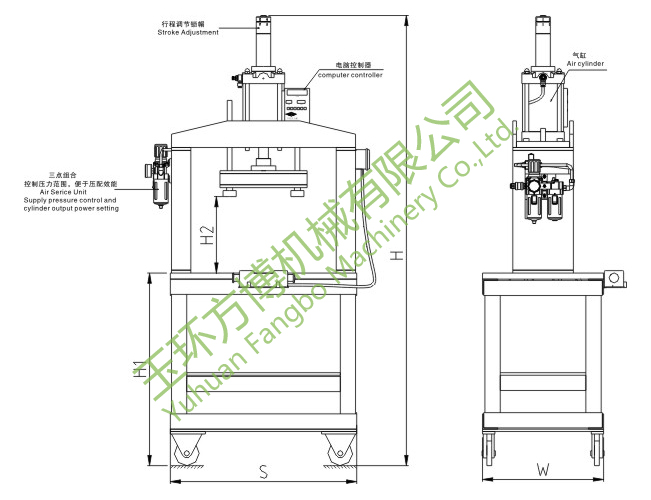

型号Model
H
H1
H2
S
W
FBQ-S1200
1870
800
315
780
500
FBQ-S2000
1870
800
315
780
500



Specifications
规格
单位/ UNIT
FBQ-S1200
FBQ-S2000
Max working height
最大开口高度
mm

Cylinder stroke
气缸行程
mm

Table size
工作台尺寸
mm

Using pressure
使用压力
Mpa

Power
电源
V

Using pressure
使用压力
单位/UNIT

理论压力
Theory pressure

理论压力
Theory pressure

0.4
0.4
Mpa
7.71KN(771kgf)
12.05KN(1205kgf)
0.5
0.5
Mpa
9.64KN(964kgf)
15.07KN(1507kgf)
0.6
0.6
Mpa
11.57KN(1157kgf)
18.08KN(1808kgf)
0.7
0.7
Mpa
13.50KN(1350kgf)
21.10KN(2110kgf)
Weight
重量
Kg
