Double Acting CNC 4-column Hydraulic Press Machine




Product Feature

1.Three beam four columns machine body,maximum increase press machine’s effective working area,enlarge equipment’s application range.

2.Overhead style hydraulic station,compact structure,uttermost decrease equipment’s floor area,improve workshop use ratio.

3.Double action hydraulic press system design,machine tool not only achieve ordinary press machine function,but also possess stretching

machine feature.Improved greatly device use ratio,reduce fixed cost investment.

4.During device pushing process fast and slow speed can be flexible transformation,increase production efficiency,save production cost.

5.Device use 3 surface infrared ray light curtain protecton design,not only convenient and quick loading and unloading the mould,but also production more safe & secure.

6.Failure warning, pre-diagnosis, fault diagnosis function (optional).

7.Applicable to punching and stretching of auto interior accessories.




Technical Parameters

The specific technical data, Please contact our staff of the company

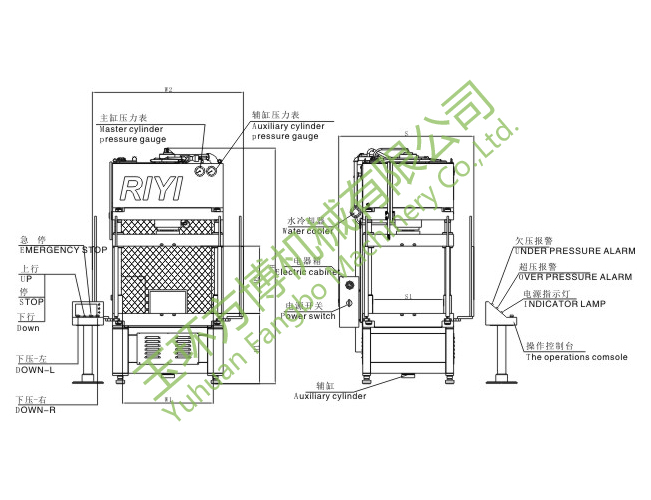

型号Model
H
H1
H2
S
S1
W
W1
FBY-DAFC45-U25
3000
900
865
1720
915
1170
1600



Technical Parameters
技术参数
单位/ UNIT
FBY-DAFC45-U25
Rated Force
公称力
KN

Knock-out Force
顶出力
KN

Rated Oil Pressure
额定油压
Mpa
18
Slide Stroke
滑块行程
mm

Knock-out Stroke
顶出行程
mm

Daylight Opening Height
最大开口高度
mm

Slider            Down Speed
滑块          快下速度
mm/s

Slider            Pressing Speed
滑块          工进速度
mm/s

Slider            Return Speed
滑块          回程速度
mm/s

Knock-out           Up Speed
顶出                上升
mm/s

Knock-out        Return Speed
顶出               退回
mm/s

Table area(left/right×front/back)
工作台有效面积(左右×前后)
mm

The bed from the ground height
工作台面离地高度
mm

Oil pump motor power
油泵电机功率
kw

Machine appearance(total height×left/right×front/back)
机床外形(总高×左右×前后)
mm

Power(3ΦAC,60Hz)
电源(3ΦAC,60Hz)
V

Weight
重量
kg

Fuel tank capacity
油箱容量
L
