FBY-FCC Series of CNC Four-column Hydraulic Press



Product Feature

1.This machine adopts 4-column structure with high guiding accuracy.

2.Electric system adopts PLC control and travel, pressure and speed can be set on touch screen.

3.Oil cylinder is integrally cast and precisely polished to ensure high reliability and good impact resistance when it is used under high pressure.

4.Downward stroke has two kinds of speed, fast stepping and slow feeding. Fast stepping speed improves operation efficiency. Slow feeding speed can be adjusted freely to protect molds and improve product quality.

5.Safely designed, the machine adopts double-hand operation is furnished with functions of emergency stop and up-and-down inching.

6.Pressure sensor is installed to display actual pressure. Pressure testing range can be set to test whether press-fitted products are qualified or not.

7.Infrared safety device, four-column hydraulic machine (optional).

8.Repeated positioning accuracy ±0.03mm.






Technical Parameters

The specific technical data, Please contact our staff of the company

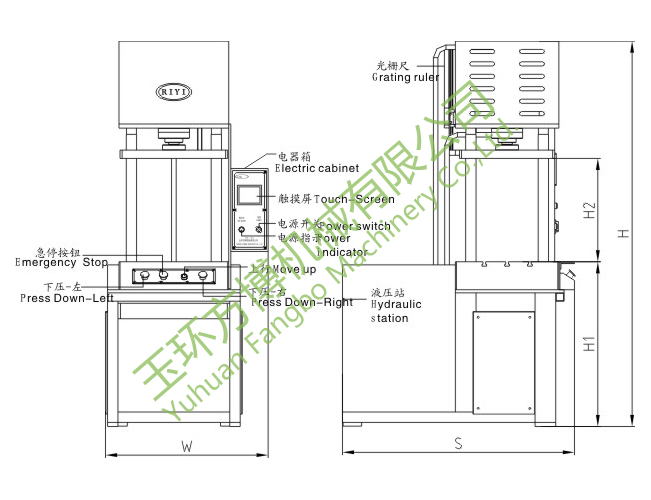

型号Model
H
H1
H2
S
W
FBY-FCC03
1810
850
350
1120
855
FBY-FCC05
1860
850
400
1170
900
FBY-FCC10
2000
850
450
1200
920
FBY-FCC20
2200
850
450
1300
950
FBY-FCC30
2300
850
500
1400
1000
FBY-FCC40
2505
850
600
1400
1050
FBY-FCC50
1860
850
600
1500
1100
FBY-FCC63
2000
850
700
1500
1200
FBY-FCC80
2200
850
800
1600
1200
FBY-FCC100
2300
850
800
1600
1230



Specifications
规格
单位/ UNIT
FBY-FCC03
FBY-FCC05
FBY-FCC10
FBY-FCC20
FBY-FCC30
FBY-FCC40
FBY-FCC50
FBY-FCC63
FBY-FCC80
FBY-FCC100
Theoretical pressure
理论压力
KN
30
50
100
200
300
400
500
630
800
1000
Rated oil pressure
额定油压
Mpa
10
10
12
13
17.5
20
20
20
23
23
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Down speed
快进速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

The size of the bed
工作台尺寸
mm

The height of the bed
工作台距地面高度
mm

Motor power
电机功率
Kw

Power(3фAC,50Hz)
电源(3фAC,50Hz)
V

Weight
重量
Kg

Fuel tank capacity
油箱容量
L
