FBY-FCC-U Series of Double Acting CNC 4-columns Hydraulic Press Machine



Product Feature

1.This machine adopt 4-column structure, with balanced pressure and high guiding accuracy;

2.Electric system adopts PLC control. Stroke, pressure and speed can be set on touch screen.

3.4-column hydraulic machine can be used for materials stripping or double-action stretching.

4.With safety design and double-hand operation, this machine is equipped with functions of emergency stop, up-and-down inching.

5.It is widely applied to press-fitting and precision stretching for precision bearings and gears.

6.Infrared safety device(optional).






Technical Parameters

The specific technical data, Please contact our staff of the company

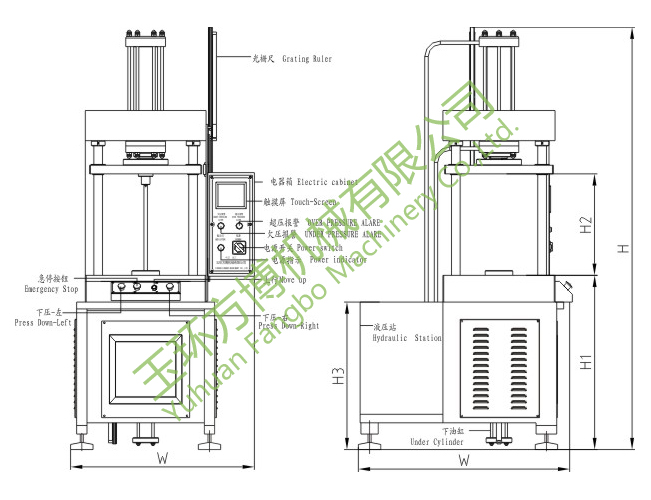

型号Model
H
H1
H2
S
W
FBY-FCC10-U
1760
850
400
1200
1000
FBY-FCC15-U
1850
850
450
1300
1100
FBY-FCC20-U
1950
850
450
1450
1250
FBY-FCC30-U
2050
850
500
1500
1350



Specifications
规格
单位/ UNIT
FBY-FCC10-U
FBY-FCC15-U
FBY-FCC20-U
FBY-FCC30-U
Theoretical pressure
理论压力
KN
100
150
200
300
Rated oil pressure
额定油压
Mpa
12
14
13
17.5
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Fast stepping speed of main cylinder
主缸快下速度
mm/s

Slow stepping speed of main cylinder
主缸工进速度
mm/s

Return speed of main cylinde
主缸回程速度
mm/s

Lower cylinder pressure
下缸压力
Kn

Lower cylinder stroke
下缸行程
mm

The size of the bed
工作台尺寸(左右×前后)
mm

The height of the bed
工作台距地面高度
mm

Motor power
电机功率
Kw

Power(3фAC,50Hz)
电源(3фAC,50Hz)
V

Weight
重量
Kg
