FBY-CC-P Series of Fast CNC Single-column Hydraulic Press


Product Feature
1.The C-body design, whole body casting,stable performance, use small space and easy to operate.

2.With PLC control,easy programming process control action,positioning accuracy, high precision.

3.Equipped with pressure sensors,displays the actual pressure,pressure range can be set to detect the product is qualified or not.

4.Safety designed,using both hands to operate,with emergency stop button and jog up and down function.

5.Key and Foot Switch two cycle start modes.

6.Control mode can change according to customer requirements.

7.Widely used for bearings,gears and other precision press-fit parts.

8.Infrared protection and Pressure sensor can be configured (Optional).

9.Failure warning, pre-diagnosis, fault diagnosis function (optional).








Technical Parameters

The specific technical data, Please contact our staff of the company

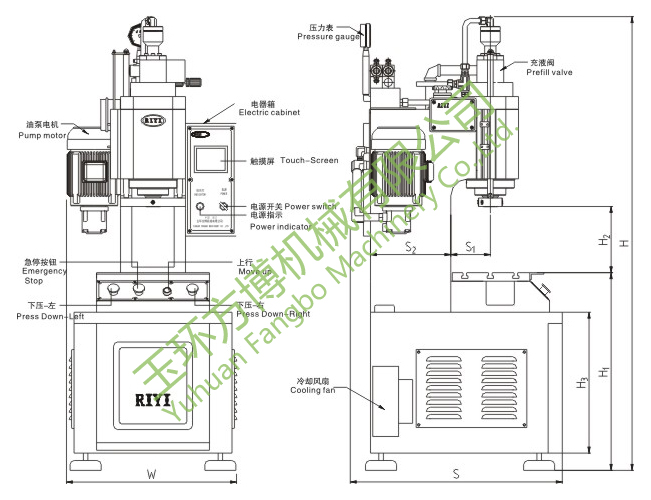

型号Model
H
H1
H2
H3
S
S1
S2
W
FBY-CC10-P
2060
920
350
500
890
200
350
700
FBY-CC15-P
2280
920
290
500
1020
200
380
700



Specifications
规格
单位/ UNIT
FBY-CC10-P
FBY-CC15-P
Theoretical pressure
理论压力
KN
100(10T)
150(15T)
Rated oil pressure
额定油压
Mpa
11.5
14
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Throat Depth
喉深
mm

Down speed
快进速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

The size of the bed
工作台尺寸
mm

The height of the bed
工作台距地面高度
mm

The size of die shank hole
模柄孔尺寸
mm

Motor power
电机功率
KW

Power(3фAC,50Hz)
电源(3фAC,50Hz)
V

Weight
重量

Kg


Fuel tank capacity
油箱容量
L
