FBY-KC-P Series of CNC Single-column Hydraulic Press Machine



Product Feature

1.The C-body design, whole body casting,stable performance, use small space and easy to operate.

2.With PLC control,easy programming process control action,positioning accuracy, high precision.

3.Equipped with pressure sensors,displays the actual pressure,pressure range can be set to detect the product is qualified or not.

4.Safety designed,using both hands to operate,with emergency stop button and jog up and down function.

5.Key and Foot switch two cycle start modes.

6.Control mode can change according to customers requirements.

7.With a filling valve,have a high speed.

8.Widely used in parts of the press forming, stretching,bending,punching, stamping, shaft alignment and press-fit etc.

9.lnfrared protection,under cylinder,and Pressure sensor can be configured(Optional).

10.Failure warning, pre-diagnosis, fault diagnosis function (optional).






Technical Parameters

The specific technical data, Please contact our staff of the company

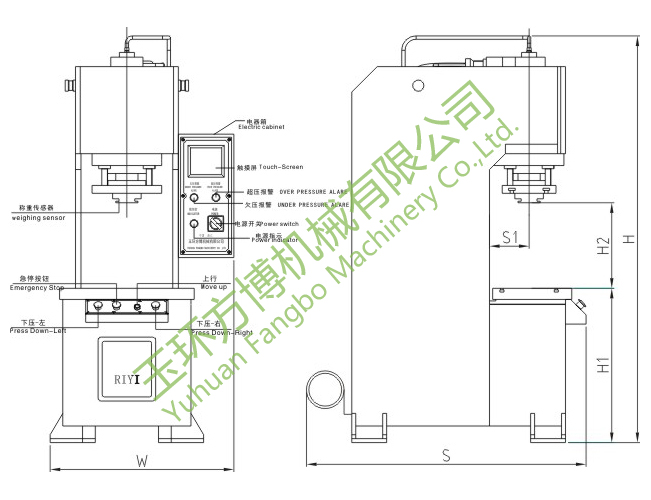

型号Model
H
H1
H2
S
S1
S2
S3
W
W1
FBY-KC40P
2450
700
600
920
320
620
-
1300
-
FBY-KC50P
2500
975
600
1400
250
875
-
1100
-
FBY-KC63P
2650
730
500
1600
250
870
-
1100
-
FBY-KC100P
2650
730
500
1800
250
920
-
1150
-
FBY-KC315P
3100
700
1200
2100
700
1400
-
2250
-
FBY-KC500P
3380
-
-
2600
-
-
-
2850
-



Specifications
规格
单位/ UNIT
FBY-KC40P
FBY-KC50PT
FBY-KC63P
FBY-KC100P
FBY-KC315P
FBY-KC500P
Theoretical pressure
理论压力
KN
400(40T)
500(50T)
630(63T)
1000(100T)
3150(315T)
5000(500T)
Rated oil pressure
额定油压
Mpa
20.5
24
22
22
25
25
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Throat Depth
喉深
mm

Down speed
快进速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

The size of the bed
工作台尺寸
mm

The height of the bed
工作台距地面高度
mm

The size of die
shank hole
模柄孔尺寸
mm

Motor power
电机功率
KW

Power(3фAC,50Hz)
电源(3фAC,50Hz)
V

Weight
重量

Kg


Fuel tank capacity
油箱容量
L
