FBT-C-D Series of Desktop Single-column Hydraulic Press Machine(under cylinder)




Product Feature

1.The C-body design,whole body cast,high rigid.

2.Under cylinder configured to facilitate part to taken out.

3.All hydraulic systems,reliable performance.

4.Rod mechanical limit,under pressure stroke adjustable,positioning accuracy ±0.02mm.

5.Downward movement with the fast and Feeding speed, the fast forward improve work efficiency;Feeding speeds can be adjusted to protect the mold and improve product quality.

6.Safety designed,using both hands to operate,with emergency stop button and jog up and down function.

7.Key and Foot Switch two cycle start modes.

8.Infrared protection can be configured (Optional).

9.Failure warning, pre-diagnosis, fault diagnosis function (optional).

Technical Parameters
The specific technical data, Please contact our staff of the company

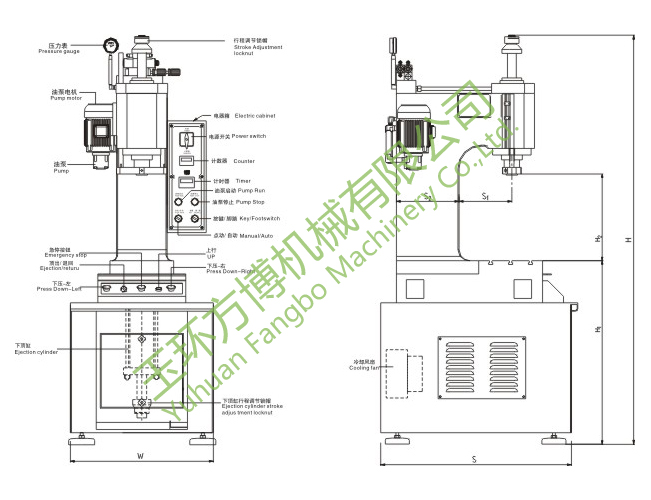

型号Model
H
H1
H2
S
S1
S2
W
FBY-CP05D
1900
940
400
900
230
280
650



Specifications
规格
单位/ UNIT
FBY-C05D
Theoretical pressure
理论压力
KN
50(5T)
Rated oil pressure
额定油压
Mpa
10
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Throat Depth
喉深
mm

Down speed
快进速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

Ejection force
顶出速度
mm/s

Ejection force
顶出力
KN

Ejection stroke
顶出行程
mm

The size of the bed
工作台尺寸
mm

The height of the bed
工作台距地面高度
mm

The size of die shank hole
模柄尺寸
mm

Motor power
电机功率
KW

Power(3фAC,50Hz)
电机功率
V

Weigh
重量
kg
