Your location:Index >> Split Type/integral Single-column Hydraulic Press Split Type/integral Single-column Hydraulic Press

FBY-C系列 分体式单柱液压机


Product Feature

1.The-C-body design,use small space and easy to operate.

2.Whole body casting,rigid and stable performance.

3.Rod mechanical limit,under pressure stroke adjustable,positioning accuracy ±0.02mm.

4.Downward movement with the fast and feeding speed;the fast forward improve product quality.

5. Safety design, using both hands to operate, with emergency stop and jog up and down function.

6.Key and foot Switch two cycle start modes.

7. Widely used in parts of the press forming, stretching,bending, punching, stamping, shaft alignment and press-fit etc.

8.stroke,pressure,speed,can adjust.

9.lnfrared protection,under cylinder,and Pressure sensor can be configured(Optional).

10.Failure warning, pre-diagnosis, fault diagnosis function (optional).



Technical Parameters

The specific technical data, Please contact our staff of the company

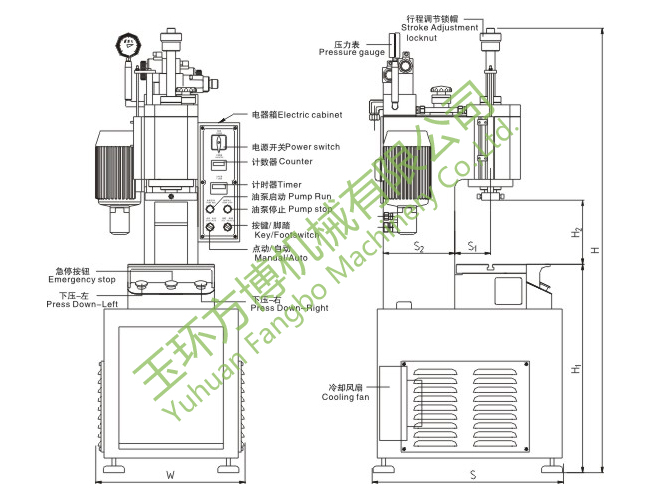

型号Model
H
H1
H2
S
S1
S2
W
FBY-C01
1810
850
315
650
140
240
500
FBY-C02
1850
850
315
650
140
255
500
FBY-C03
1870
850
385
720
140
260
600
FBY-C05
1740
880
285
720
140
290
600
FBY-C05L
1890
880
365
720
140
290
600
FBY-C10
2060
920
355
890
200
350
700
FBY-C15
2280
920
380
1020
200
380
700



Specifications
规格
单位/ UNIT
FBY-C01
FBY-C02
FBY-C03
FBY-C05
FBY-C05L
FBY-C10
FBY-C15
Theoretical pressure
理论压力
KN
10(1T)
20(2T)
30(3T)
50(5T)
50(5T)
100(10T)
150(15T)
Rated oil pressure
额定油压
Mpa
4
8
10
10
10
12
14
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Throat Depth
喉深
mm

Down speed
快进速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

The size of the bed
工作台尺寸
mm

The height of the bed
工作台距地面高度
mm

The size of die shank hole
模柄尺寸
mm

Motor power
电机功率
Kw

Power(3фAC,50Hz)
电源(3фAC,50Hz)
V

Weight
重量
Kg

Fuel tank capacity
油箱容量
L
