FBSY-WSY High precision horizontal servo hydraulic press-mounting machine


Product Feature

1.Machine body is integrally welded/cast to ensure good rigidity and stable performance.

2.It adopts advanced pump-controlled technology, uses servo motor to drive main driving oil pump and reduce control valve loop. It is a kind of precise energy-saving hydraulic machine to control hydraulic oil cylinder. Compared to common hydraulic machines, servo hydraulic machines have such advantages as high precision, low noise, high efficiency and good flexibility etc.

3.It is furnished with hydraulic pressure sensor, weighting sensor, displacement sensor, PLC and touch screen system control. Data can be derived via USB interface.

4.Servo system can control multi-stage pressure, speed and stroke. All parameters can be set on touch screen to ensure easy operation. High accuracy pressure and displacement control can be realized without requiring position limitation.

5.Mold base is installed with pressure sensor to detect the stress state of workpieces during pressurizing process in real time. When press-fitting pressure exceeds the set upper-limit pressure or is lower than lower-limit pressure, the pressure heads stop where they are and give alarm (or reset, to be decided by clients); If the set parameter exceeds alarm range, signal indication will appear on the machine screen to help operator find out the problems.

6.Pressure and displacement can be tested simultaneously. When pressure or displacement is beyond the set range, the machine will give alarm and stop operation automatically.

7.In time of defective products or machine malfunctions, the machine will stop operation and give aural and visual alarm to remind operator of handling (optional).

8.More than 25 sets of built-in press-fitting programs can be set and used. Product models can be easily changed only by using different programs.

9.Minimum displacement set value is 0.01mm and resolution ratio is 0.001mm; Pressure control accuracy: 1% (100-1000Kg), 5% or more (less than 100Kg).

10.This machine adopts servo drive system and is internally installed with pressure sensor to detect actual load, speed and pressure closed loop control. Displacement repeated accuracy is ±0.02mm and pressure repeated accuracy is 1%F.S.

11.It is easy to operate the machine, with low maintenance costs.

12.Safe light emitting screen (optional), safe double-hand braking and emergency stop button etc.

13.High precision horizontal servo hydraulic machineis widely applied to assembly, press-fitting and stamping in such industries as auto parts, home appliances, hardware tools, rubbers and powder metallurgy etc.




Technical Parameters

The specific technical data, Please contact our staff of the company

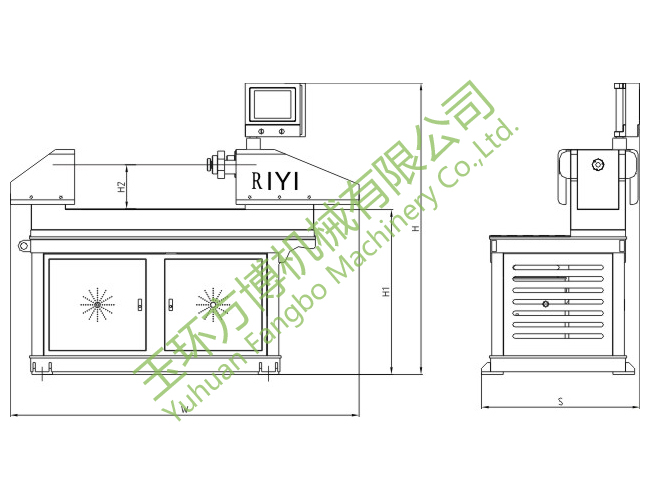

型号Model
H
H1
H2
S
W
FBSY-WSY-01
1500
850
195
700
1000
FBSY-WSY-03
1550
850
195
750
1200
FBSY-WSY-05
1700
850
220
850
1350
FBSY-WSY-10
1750
850
220
1000
1650



Specifications
规格
单位/ UNIT
FBSY-WSY-01
FBSY-WSY-03
FBSY-WSY-05
FBSY-WSY-10
Rated oil pressure
理论压力
KN
10(1T)
30(3T)
50(5T)
100(10T)
Theoretical pressure
额定油压
Mpa
5
10
10
12
Max stroke
最大行程
mm

Daylight Opening Height
最大开口高度
mm

Down speed
快进速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

The size of the bed
工作台有效面积
mm

The height of the bed
工作台距地面高度
mm

Weight
重量
Kg
