Your location:Index >> CNC Single-column Servo Hydraulic Press CNC Single-column Servo Hydraulic Press

FBSY-C Series of CNC Single-column servo Hydraulic Press


Product Feature

1.Equipment body is integrally cast to ensure good rigidity and stable performance.

2.This equipment adopt advanced pump control technology, saving 30%-40% of energy compared to common pressure machines. Noise is no more than 60db.

3.Servo motor directly drives gear pump to feed oil. With stable pressure, principal axis has high repeated positioning accuracy when moving downwards.

4.Downward stroke has two kinds of speed, fast stepping and slow feeding. Fast stepping speed improves operation efficiency. Slow feeding speed can be adjusted freely to protect molds and improve product quality.

5.This equipment has oil temperature testing function. When oil temperature is too high, this equipment will actuate cooler to cool down hydraulic oil so as to ensure equipment stability.

6.Pressure and displacement of press-fitting can be tested at the same time. When pressure or displacement is not within set range, the machine will give alarming and stop operation automatically.

7.Maintenance cost is low due to its easy control and less accessories.

8.It is mainly applied to press-fitting and fine blanking for precision bearings and gears.

9.Long time pressure maintaining can be conducted after press-fitting is finished.

10.Infrared safety device (optional)






Technical Parameters

The specific technical data, Please contact our staff of the company

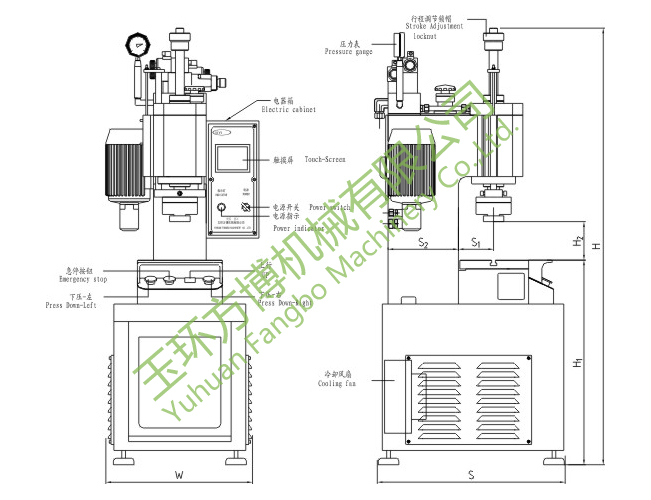

型号Model
H
H1
H2
S
S1
S2
W
FBSY-C20
2040
680
410
1170
225
460
850
FBSY-C30
2270
810
510
1400
250
550
910
FBSY-C40
2570
720
550
1800
260
600
1050
FBSY-C50
2450
750
550
1300
250
650
1000
FBSY-C63
2450
750
550
1300
250
650
1000
FBSY-C80
2650
750
600
1400
250
720
1000
FBSY-100
2700
750
600
1450
250
800
1100



Specifications
规格
单位/
UNIT
FBSY-C20
FBSY-C30
FBSY-C40
FBSY-C50
FBSY-C63
FBSY-C80
FBSY-C100
Theoretical outpute pressure
理论出力
KN
200
300
400
500
630
800
1000
Precision of pressure
压力精度
%

Repeat positioning accuracy
下行重复
定位 精度
mm

Rated oil pressure
额定油压
Mpa
13
17.5
20
25
25
25
25
Max stroke
最大行程
mm

Max Opening Height
最大开口高度
mm

Throat Depth
喉深
mm

Down speed
快进速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

The size of the bed

工作台尺寸
(左右×前后)

mm

The height of the bed
工作台距
地面 高度
mm

Power of motor
电机功率
Kw

The holding time
保压时间
S

Mold mounting hole
模柄孔径
mm

Power(3фAC,50Hz)
电源
(3фAC,50Hz)
V

Weight
重量(约)
Kg

Fuel tank capacity
油箱容量
L






5
