Your location:Index >> CNC Single-column Servo Hydraulic Press CNC Single-column Servo Hydraulic Press

FBSY-C系列 数控单柱伺服液压机


Product Feature

1.Equipment body is integrally cast to ensure good rigidity and stable performance.

2.Equipment adopts advanced pump control technology, saving 30%-40% energy compared to common pressure machines. Noise is no more than 55db.

3.Servo motor directly drives gear pump to feed oil. With stable pressure, principal axis has high repeated positioning accuracy (±0.01mm) when moving downwards.

4.Weighing sensor is installed to display actual pressure.

5.Downward stroke has two kinds of speed, fast stepping and slow feeding. Fast stepping speed improves operation efficiency. Slow feeding speed can be adjusted freely to protect molds and improve product quality.

6.This equipment has oil temperature testing function. When oil temperature is too high, this equipment will actuate cooler to cool down hydraulic oil so as to ensure equipment stability.

7.Pressure and displacement of press-fitting can be tested at the same time. When pressure or displacement is not within set range, the machine will give alarming and stop operation automatically.

8.Maintenance cost is low due to its easy control and less accessories.

9.It is mainly applied to press-fitting and fine blanking for precision bearings and gears.

10.Long time pressure maintaining can be conducted after press-fitting is finished.

11.Infrared safety device (optional).




Technical Parameters

The specific technical data, Please contact our staff of the company

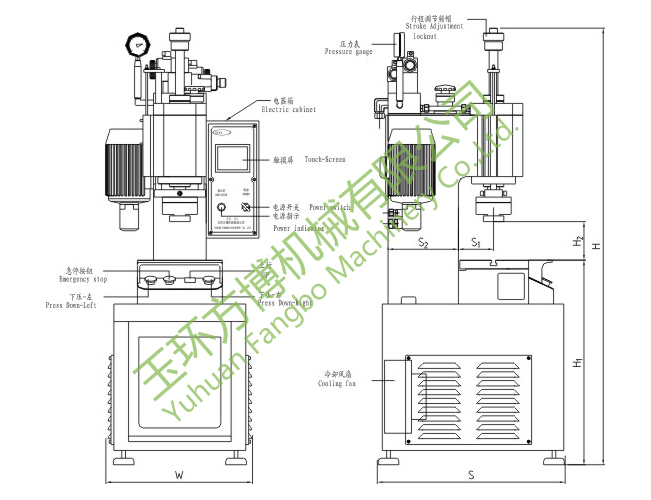

型号Model
H
H1
H2
S
S1
S2
W
FBSY-C01
1890
890
395
780
140
300
630
FBSY-C02
1890
890
395
780
140
300
630
FBSY-C03
1890
890
380
780
140
300
630
FBSY-C05
1970
880
400
800
140
350
640
FBSY-C10
2150
880
345
900
200
400
750
FBSY-C6.3
1800
720
185
760
160
320
720
FBSY-6.3L
2100
720
280
760
160
320
720
FBSY-C15
2030
760
310
1060
200
410
790



Specifications
规格
单位/
UNIT
FBSY-C01
FBSY-C02
FBSY-C03
FBSY-C05
FBSY-C10
FBSY-C6.3
FBSY-C6.3L
FBSY-C15
Theoretical outpute
pressure
理论出力
KN
10
20
30
50
100
63
63
150
Precision of pressure
压力精度
%

Repeat positioning accuracy
下行重复
定位 精度
mm

Rated oil pressure
额定油压
Mpa
4
8
10
10
12
12.5
12.5
14
Max stroke
最大行程
mm

Max Opening Height
最大开口高度
mm

Throat Depth
喉深
mm

Down speed
快进速度
mm/s

Pressing speed
工进速度
mm/s

Return speed
回程速度
mm/s

The size of the bed

工作台尺寸
(左右×前后)

mm

The height of the bed
工作台距
地面 高度
mm

Power of motor
电机功率
Kw

The holding time
保压时间
S

Mold mounting hole
模柄孔径
mm

Power(3фAC,50Hz)
电源
(3фAC,50Hz)
V

Weight
重量(约)
Kg

Fuel tank capacity
油箱容量
L
