FBS-C Series of Floor-type electric servo press machines


Product Feature

No.1  High precision electric servo press machines, automatic servo

press-fitting equipment:

Product features:

1.Precision press-fitting of multistage speed;

2.Evaluation of online press-fitting quality;

3.Press-fitting curve display;

4.Various press-fitting modes are available for choice.

5.100 sets of press-fitting programs can be set.

6.Transmission and storage of press-fitting data

7.Stroke multistage speed:fast stepping, detection,

press-fitting and return

Various press-fitting modes are available for choice when

programs are being set.

1.Constant press-fitting speed, set accurate position stop;

2.Constant press-fitting speed, set accurate pressure stop;

3.Constant press-fitting speed, set accurate displacement stop;

4.Constant press-fitting speed, I/O trigger stop.

This equipment adopts single column structure and touch

screen display. Servo motor drives ball screw rod.

No.2  Functions of this equipment series are as below:

Position setting function:

1.Display of upper press head position

2.Press-fitting stroke is adjustable.

3.Digital display of actual press-fitting stroke is controllable.

Repeated accuracy:±0.005mm;

Touch screen display accuracy:0.001mm.

Pressure setting function:

1.Set upper limit of press heads pressure. When press-fitting

 press is more than upper limit

pressure, upper press head strokes back immediately to give

alarming.

2.Set lower limit of press heads pressure. When press-fitting

press is less than lower limit

pressure, upper press head strokes back immediately to give

alarming.

3.Pressure display:0-15000Kg(or 0-5000N), pressure control

accuracy:1‰ (500-15000Kg), 5‰ or more (less than 500Kg).

No.3  Electric control device:

1.Electrical appliance control cabinet has illuminating lamp

for inspection and maintenance.

Main electrical components adopt famous brands from at

home and abroad.

2.Control system includes two kinds of operation modes,

manual operation and semi-automatic single circulation.

3.PLC adopts German Siemens Brand. Touch screen adopts

German Siemens or WEINVIEW

brand. Ball screw rod adopts Switzerland imported brand.

Servo motor and controller are Japanese

Yaskawa Brand. And other electrical components are all

imported brands or domestic famous brands.


Technical Parameters

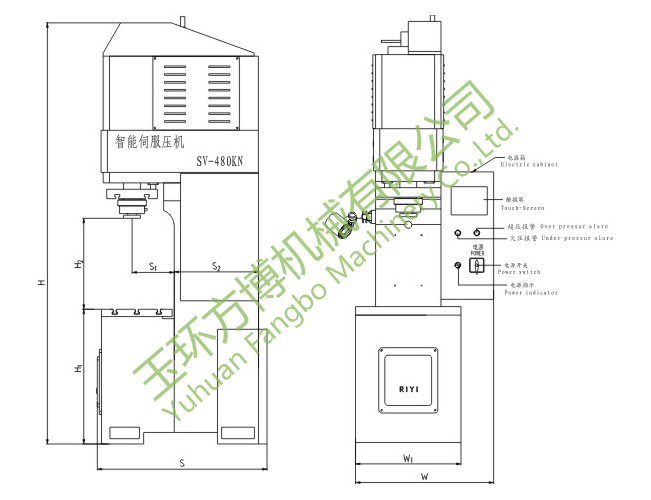

Floor type- This series of machine body casting is installed with precise-type servo motor. Structural appearance is model C floor type.
The specific technical data, Please contact our staff of the company

型号Model
单位
/UNIT
FBS-C01
FBS-C02
FBS-C03
FBS-C05
FBS-C10
FBS-C15

理论出力
Theoreticaloutput pressure

kn
10
20
30
50
100
150

最大行程
Max stroke

mm


最大开口高度

Max Opening Height

mm


喉深
Throat Depth

mm


压力精度
Pressure accuracy

压力重复精度
Pressure repeat accuracy


位置重复精度
Position repeat accuracy



快进速度
Fast-forward speed

mm/s


探测速度
Detecting speed

mm/s


压装速度
Press fitting speed

mm/s


回程速度
Feeding speed

mm/s

保压时间
The holding time
最大设定值Max.set value

推荐值Recommended value

设定单位Set unit


电机功率
Power of motor

kw


工作台有效尺寸
The size of the working table

mm


设备外形尺寸
(长×宽×高)
Equipment external dimensions(L×W×H)

mm

电源Power
v

重量(约)Weight
kg
